质保10年，开启10万次，承重50公斤
顶头滚珠设计极致静音

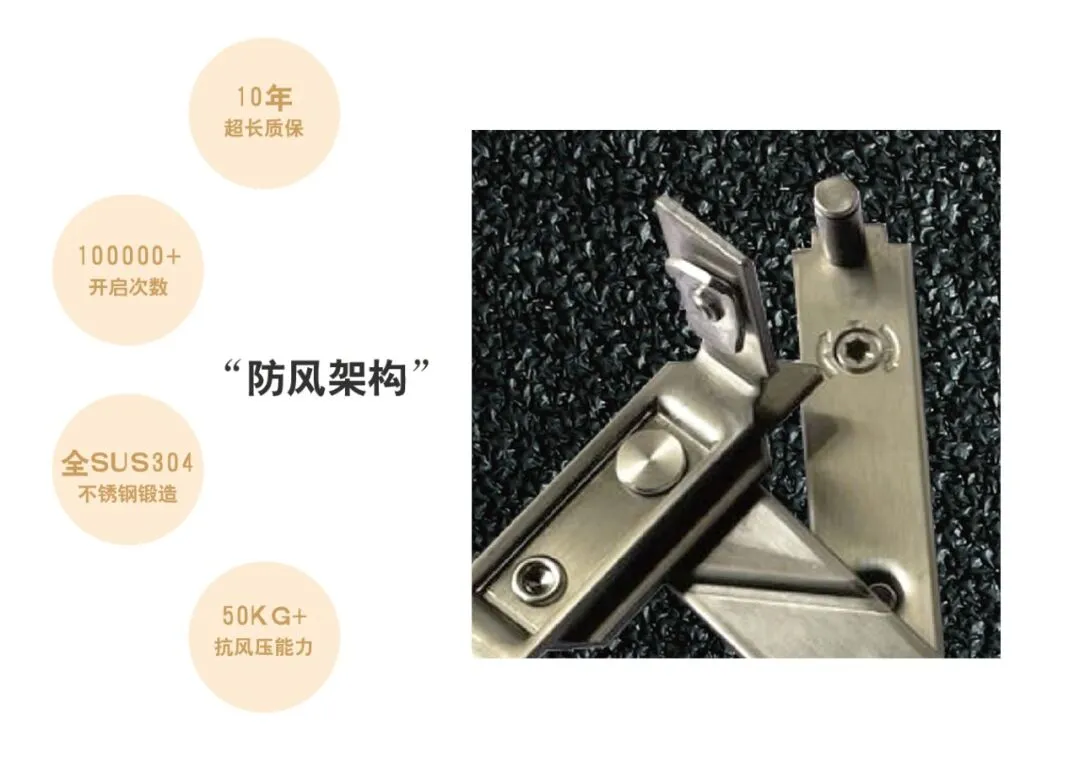

后滑防风结构，无惧翻窗
静音防尘，启闭松紧可调
不锈钢精铸锁盒，更结实耐用
全新磨砂执手握感俱佳
10 YEARS WARRANTY, OPEN 100,000 TIMES, BEARING 50 KG
THE HEAD BALL DESIGN IS EXTREMELY QUIET
AFTER SLIDING WINDPROOF STRUCTURE, NO FEAR OF TURNING OVER THE WINDOW
MUTE AND DUST-PROOF, ADJUSTABLE OPENING AND CLOSING TIGHTNESS
STAINLESS STEEL CASTING LOCK BOX, MORE DURABLE
THE NEW SCRUB FEELS GOOD IN THE HAND
五大产品特点
23方槽、13.5方槽规格
304材质质保10年
实现超强抗风阻
实心铆钉安全耐用
松紧调节手感更佳
FIVE PRODUCT FEATURES
23 SQUARE SLOTS, 13.5 SQUARE SLOTS SPECIFICATIONS
304 MATERIAL WARRANTY 10 YEARS
ACHIEVE SUPERIOR WIND RESISTANCE
SOLID RIVETS ARE SAFE AND DURABLE
LOOSE ADJUSTMENT FEEL BETTER

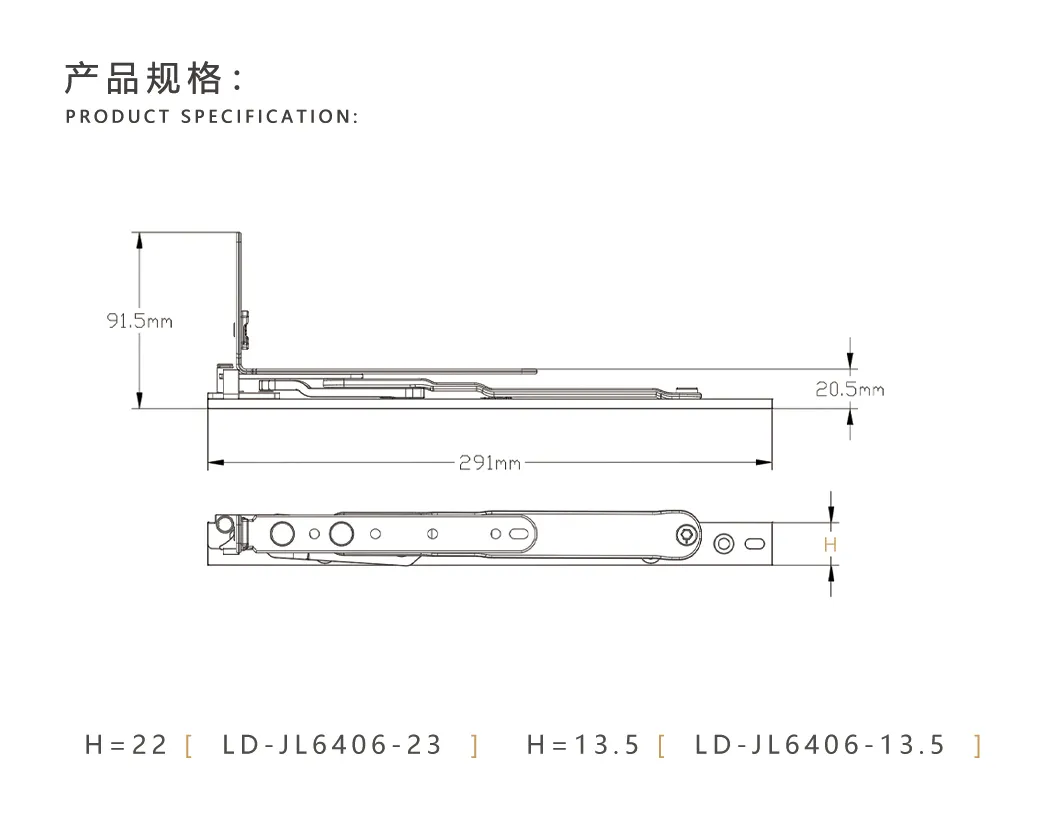

产品参数

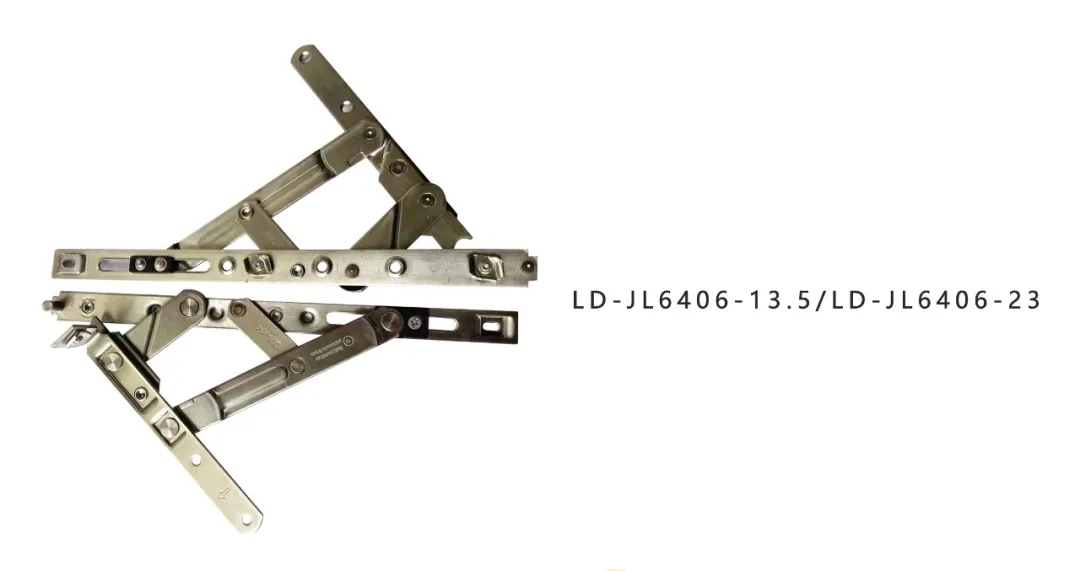

防风型厚23/13.5槽
材 质:SUS304
规 格:23方槽、13.5方槽
开启角度:88°最大开启
表面处理:原色、拉丝
适用范围:平开窗、平开门、分左右
开启次数:100000+
测试窗规格:700*2000
最大承重:50KG
PARAMETERS
WINDPROOF TYPE THICKNESS 23/13.5 SLOTS
MATERIAL: SUS304
SPECIFICATION:
23 SQUARE SLOTS, 13.5 SQUARE SLOTS
ANGLE OF OPENING:
88°MAX OPENING
SURFACE TREATMENT:
PRIMARY COLOR, DRAWING
SCOPE OF APPLICATION:
FLAT WINDOW, FLAT DOOR,
MINUTES OR SO
OPEN TIMES: 100000+
TEST WINDOW SPECIFICATION:
700*2000
MAXIMUM LOAD: 50KG
产品参数

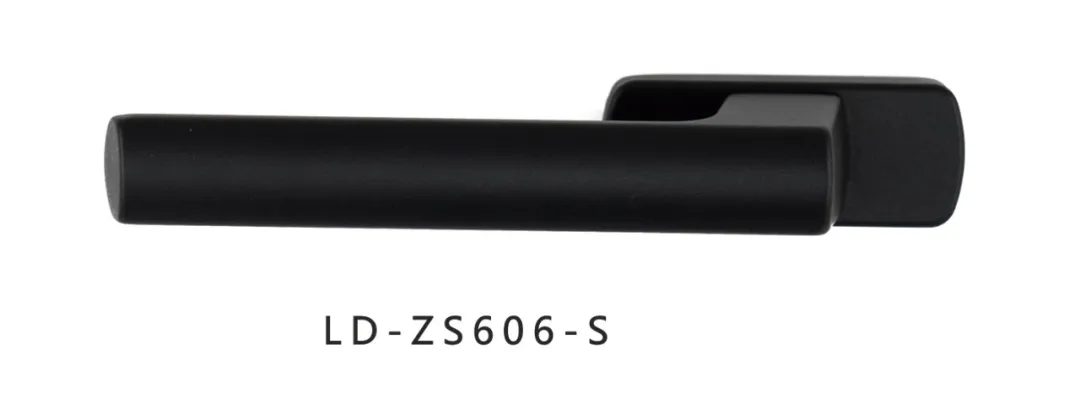

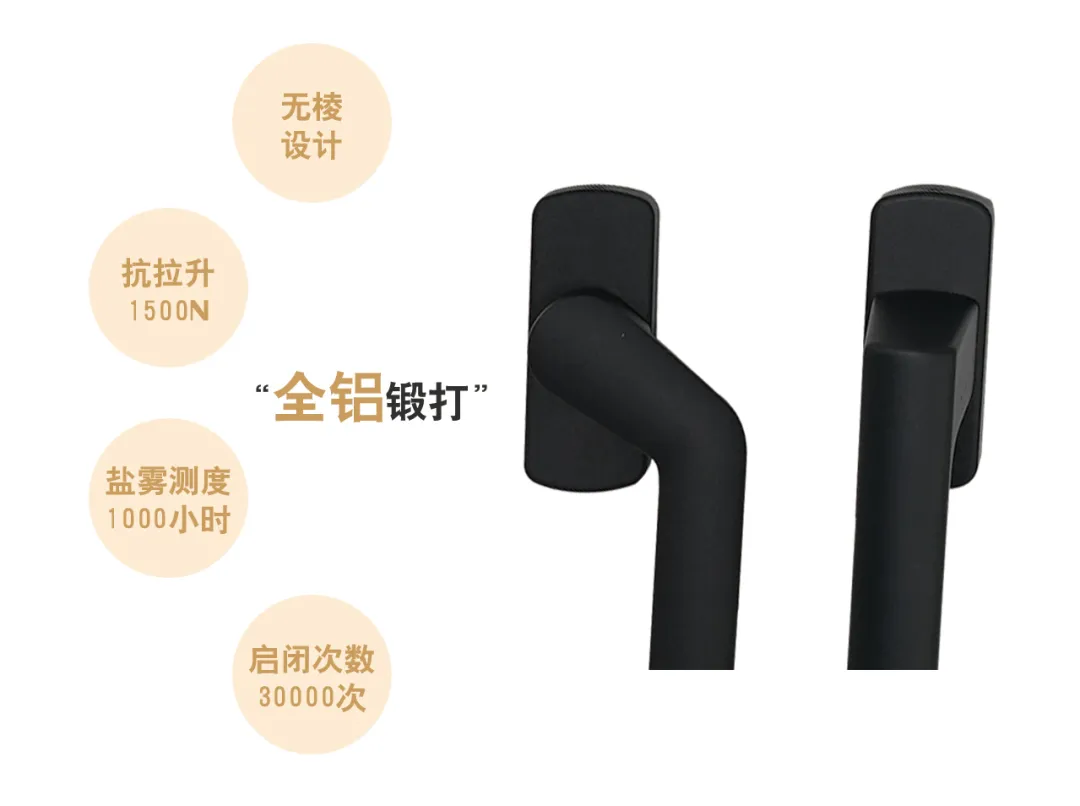

列盾牌全铝合金把手
材 质:铝合金
规 格:直把手、Y把手
表面处理:粉末喷涂
适用范围:直把手-不分左右、Y把手-分左右
标配颜色:石墨黑
款 式:方轴款
PARAMETERS
ROW SHIELD ALL ALUMINUM ALLOY HANDLE
MATERIAL:
ALUMINUM ALLOY
SPECIFICATION:
STRAIGHT HANDLE,Y HANDLE
SURFACE TREATMENT:
POWDER COATING
SCOPE OF APPLICATION:
STRAIGHT HANDLE-LEFT AND
RIGHT, Y HANDLE-LEFT AND RIGHT
STANDARD COLOR:
GRAPHITE BLACK
STYLE: SQUARE SHAFT
承重16KG/开启50000次+/质保5年
采用全SUS304实心不锈钢锻造,具有耐腐蚀，韧性高，防断裂等特点
表面总体采用拉丝处理，颜值高，表面光亮
单向锁盒，内部无齿轮，运行中不易发生故障，稳定性能极高 方轴孔采用精铸不锈钢，更加耐用，不易断裂， 垫片式设计，使锁盒的稳定性更高，不易松动，适用性更强， 多种规格，任您选择
MADE OF ALL SUS304 SOLID STAINLESS STEEL FORGING, WITH CORROSION RESISTANCE, HIGH TOUGHNESS, ANTI-FRACTURE AND OTHER CHARACTERISTICS THE SURFACE IS GENERALLY BRUSHED, THE APPEARANCE LEVEL IS HIGH, THE SURFACE IS BRIGHT ONE-WAY LOCK BOX, NO GEAR INSIDE, EASY TO BREAK DOWN IN OPERATION, HIGH STABILITY THE SQUARE SHAFT HOLE IS MADE OF PRECISION CAST STAINLESS STEEL, WHICH IS MORE DURABLE AND NOT EASY TO BREAK. GASKET DESIGN MAKES THE LOCK BOX MORE STABLE, NOT EASY TO LOOSE, AND MORE APPLICABLE A VARIETY OF SPECIFICATIONS, YOU CAN CHOOSE
产品参数

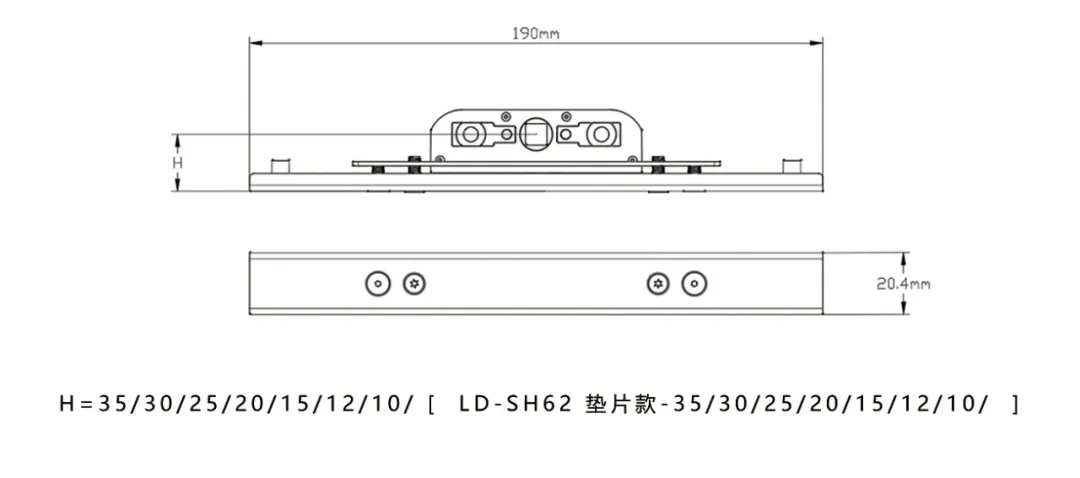

LD-全304不锈钢垫片传动盒
材 质:SUS304

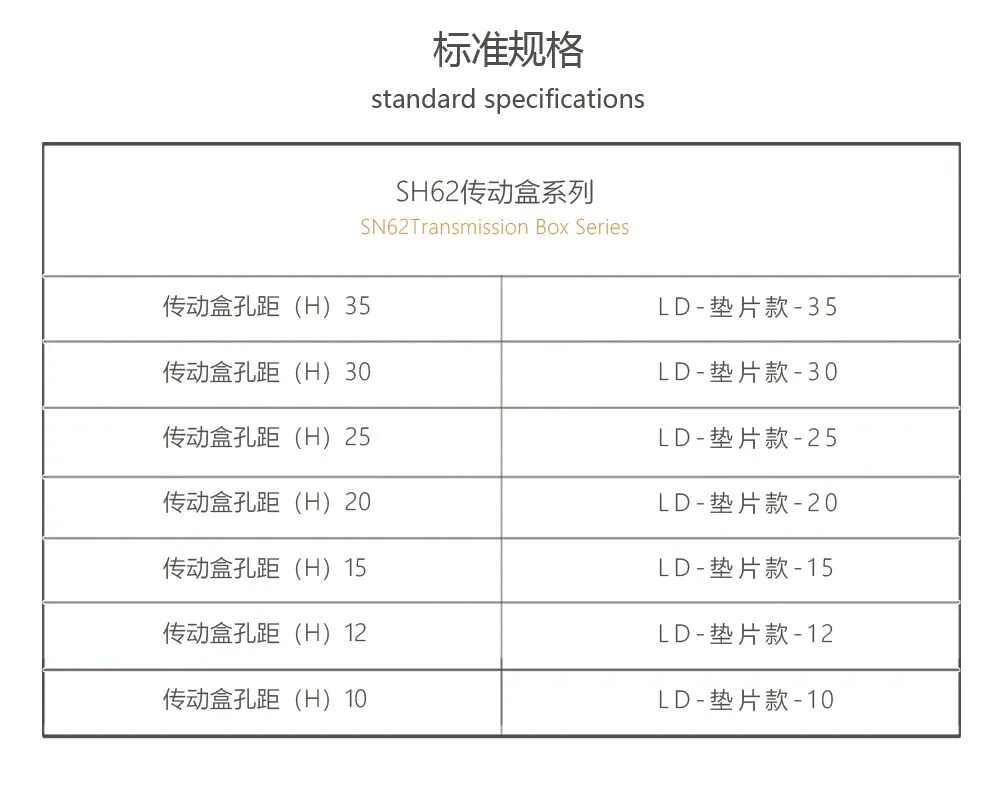

规 格:35/30/25/20/15/12/10
表面处理:原色、拉丝
适用范围:平开窗、平开门
PARAMETERS
LD-ALL304 STAINLESS STEEL GASKET DRIVE CASE
MATERIAL:SUS304
SIZE:35/30/25/20/15/12/10
SURFACE TREATMENT:PRIMARY COLOR,BRUSHED
SCOPE OF APPLICATION:CASEMENT WINDOW,FLAT DOOR
特制螺丝
精准工艺
严格加工
SPECIAL SCREW
PRECISION TECHNOLOGY
STRICT PROCESSING
产品参数

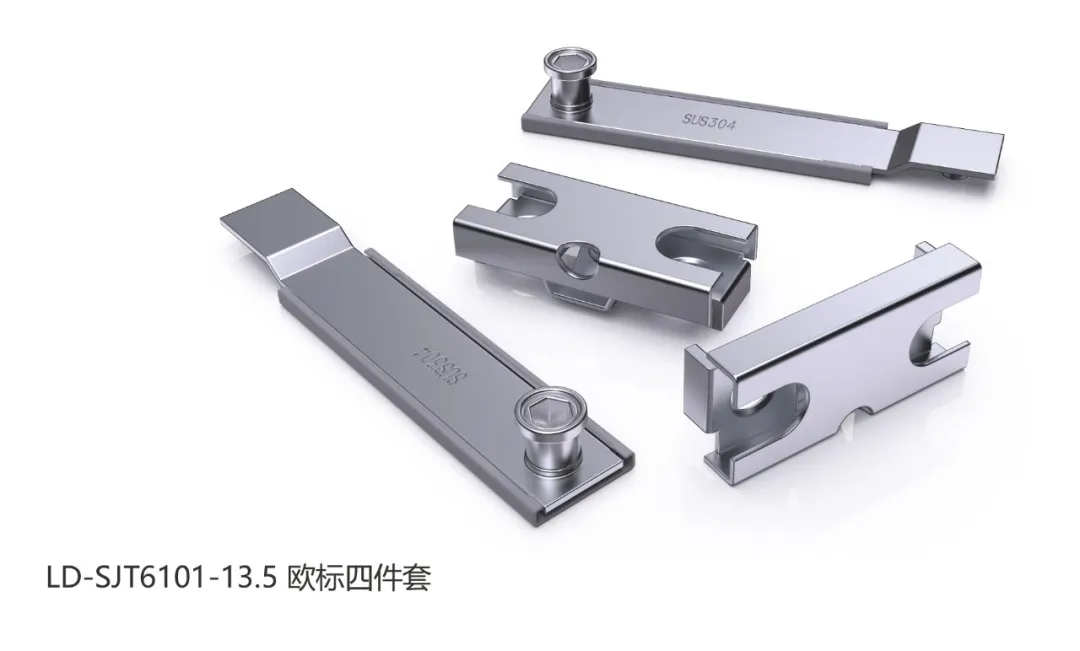

LD-SJT6101-13.5/23欧标四件套
材质：不锈钢
编号：LD-DJT6101-13.5/23
适用范围：平开窗、平开门
PRODUCT PARAMETER
LD-SJT6101-13.5/23 EUROPEAN STANDARD FOUR-PIECE SET
MATERIAL: STAINLESS STEEL
NUMBER: LD-DJT6101-13.5/23
SCOPE OF APPLICATION: CASEMENT WINDOW, FLAT DOOR
