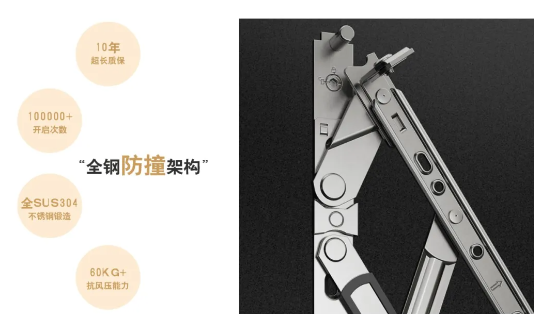

纱扇铰链左右可调节 静音防尘，启闭松紧可调 不锈钢精铸锁盒，更结实耐用 后滑防风结构，防撞块设计，无惧翻窗 质保10年，开启10万次，承重60公斤
YARN FAN HINGES CAN BE ADJUSTED FROM LEFT TO RIGHT
MUTE AND DUST-PROOF, ADJUSTABLE OPENING AND CLOSING TIGHTNESS
STAINLESS STEEL CASTING LOCK BOX, MORE DURABLE
REAR SLIDING WINDPROOF STRUCTURE, ANTI-COLLISION BLOCK DESIGN, NO FEAR OF TURNING THE WINDOW
10 YEARS WARRANTY, OPEN 100,000 TIMES, BEARING 60 KG

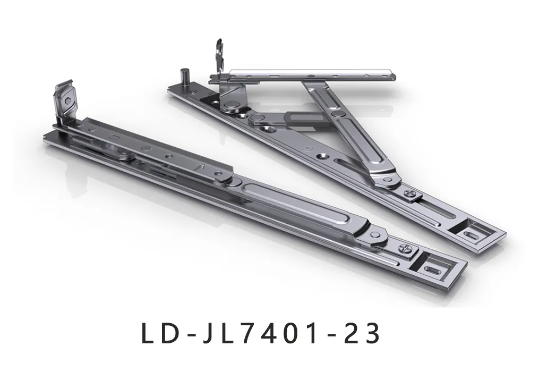

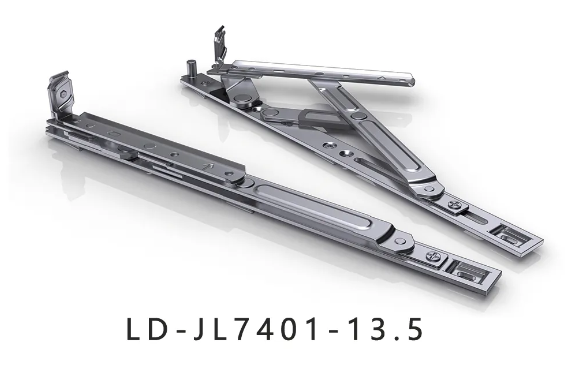

铰链LD-JL7401

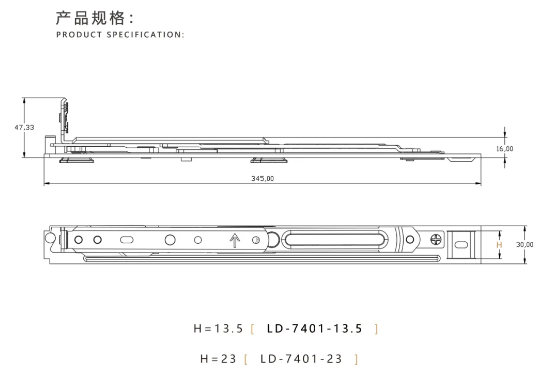

产品参数
材质：SUS304
规格：23方槽 、13.5方槽
开启角度：88°最大开启
表面处理：原色、拉丝
适用范围：平开窗、平开门、分左右
开启次数：100000+
测试窗规格：700*2000
最大承重：60KG
PARAMETERS
ALL STEEL SPECIAL HEAVY WINDPROOF HINGE
MATERIAL: SUS304
SPECIFICATION:
23 SQUARE SLOTS,13.5 SQUARE SLOTS
ANGLE OF OPENING:
88 °MAX OPENING
SURFACE TREATMENT:
PRIMARY COLOR, DRAWING SCOPE OF APPLICATION:
FLAT WINDOW, FLAT DOOR,
MINUTES OR SO
OPEN TIMES: 100000+
TEST WINDOW SPECIFICATION: 700*2000
MAXIMUM LOAD: 60KG

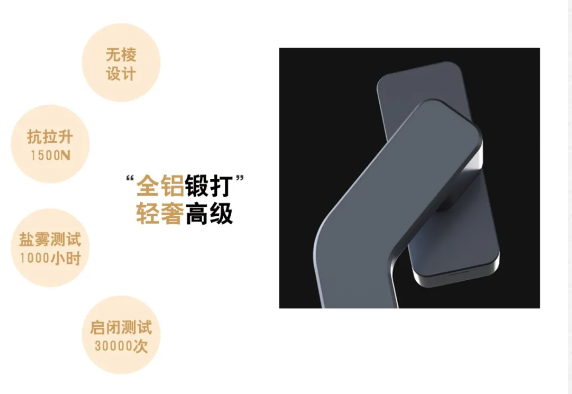

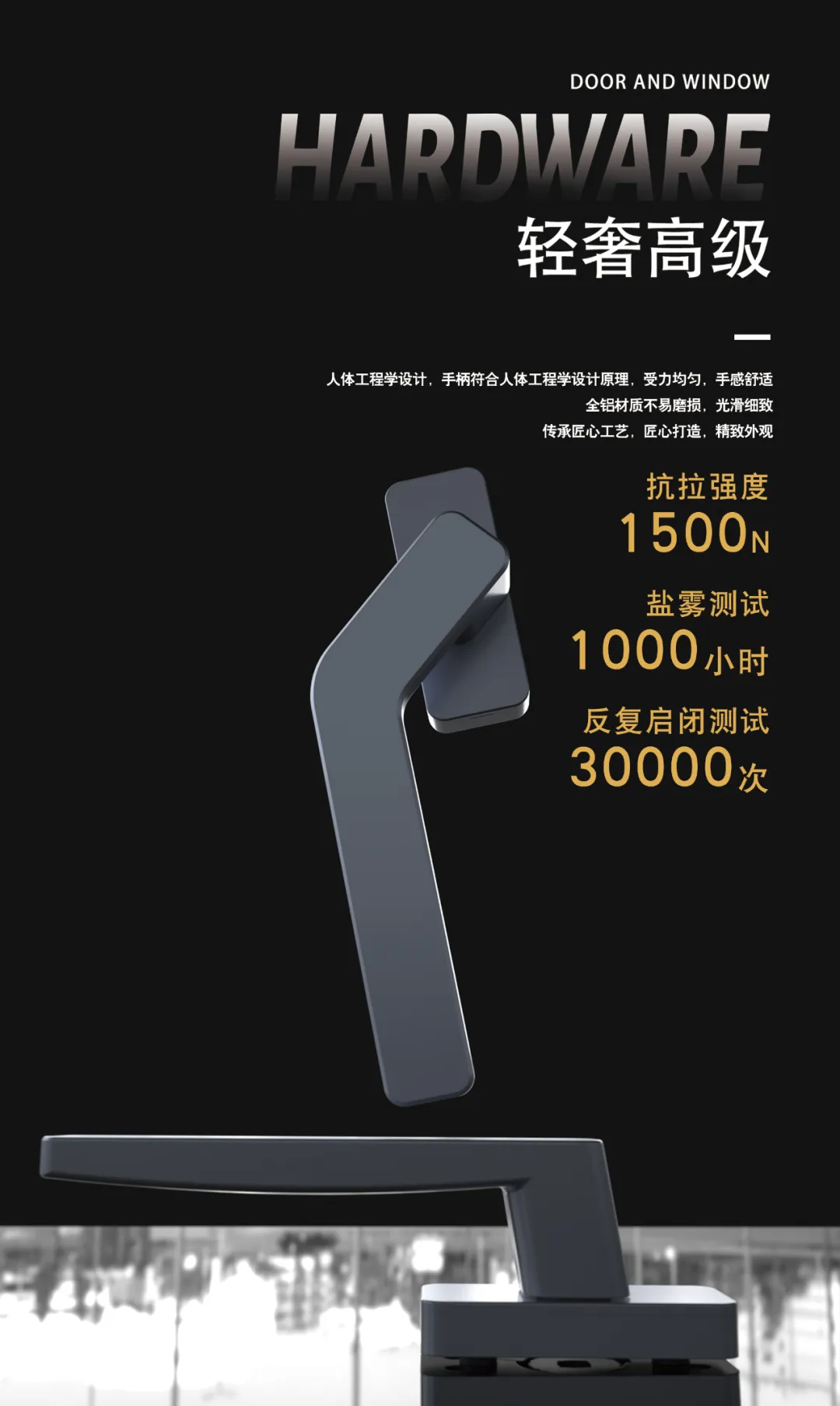

人体工程学设计，手柄符合人体工程学设计原理，受力均匀，手感舒适
全铝材质不易磨损，光滑细致
传承匠心工艺，匠心打造，精致外观
抗拉强度1500N
盐雾测试1000小时
反复启闭测试30000次
LIGHT LUXURY AND HIGH
ERGONOMIC DESIGN, HANDLE IN LINE WITH ERGONOMIC DESIGN PRINCIPLE, UNIFORM FORCE, COMFORTABLE FEEL
ALL ALUMINUM MATERIAL IS NOT EASY TO WEAR, SMOOTH AND FINE
INHERITANCE OF CRAFTSMANSHIP, CRAFTSMANSHIP, EXQUISITE APPEARANCE
TENSILE STRENGTH 1500N
SALT SPRAY TEST 1000 HOURS
REPEATED OPENING AND CLOSING TEST 30000 TIMES

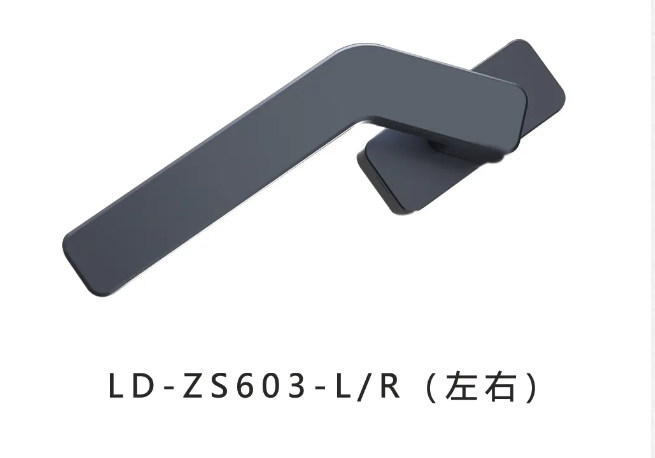

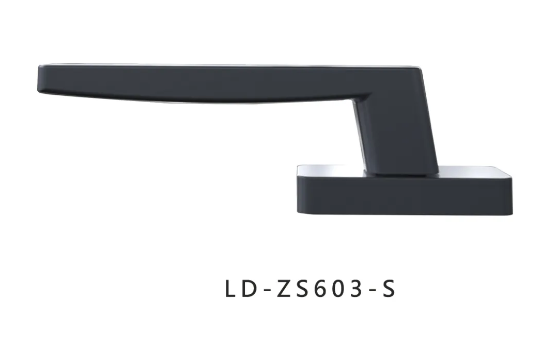

列盾牌全铝合金把手
材 质:铝合金
规 格:直把手、Y把手
表面处理:粉末喷涂
适用范围:直把手-不分左右、Y把手-分左右
标配颜色:曜岩黑、云母灰
款 式:方轴款
左右可调技术 静音设计 免穿槽快装
INVISIBLE HINGE
QUALITY ASSURANCE OF THE FUTURE
LEFT AND RIGHT ADJUSTABLE TECHNOLOGY
QUIET DESIGN
NO SLOT FAST ASSEMBLY
产品参数

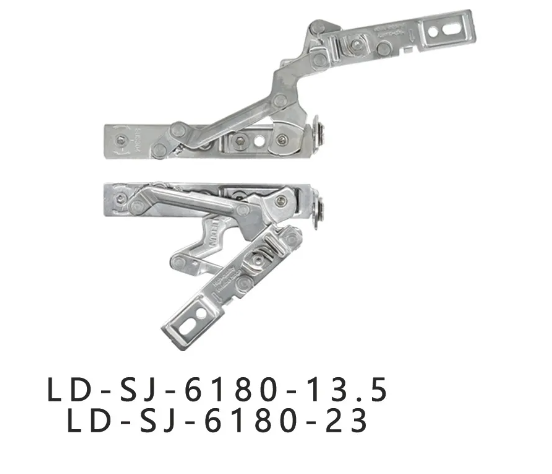

180°纱扇隐形铰链
材质:SUS304
规格:23方槽、13.5方槽
开启角度:165°最大开启
表面处理:原色、拉丝、正光
适用范围:平开窗、平开门
开启次数:25000+
最大承重:16KG
PARAMETERS
180°GAUZE FAN INVISIBLE HINGE
MATERIAL: SUS304
SPECIFICATION:
23 SQUARE SLOTS, 13.5 SQUARE SLOTS ANGLE OF OPENING: 165°MAX OPENING
SURFACE TREATMENT:
PRIMARY COLOR, BRUSHED, POSITIVE LIGHT
SCOPE OF APPLICATION:
CASEMENT WINDOW, CASEMENT DOOR
OPEN TIMES:25000+
MAXIMUM LOAD: 16KG

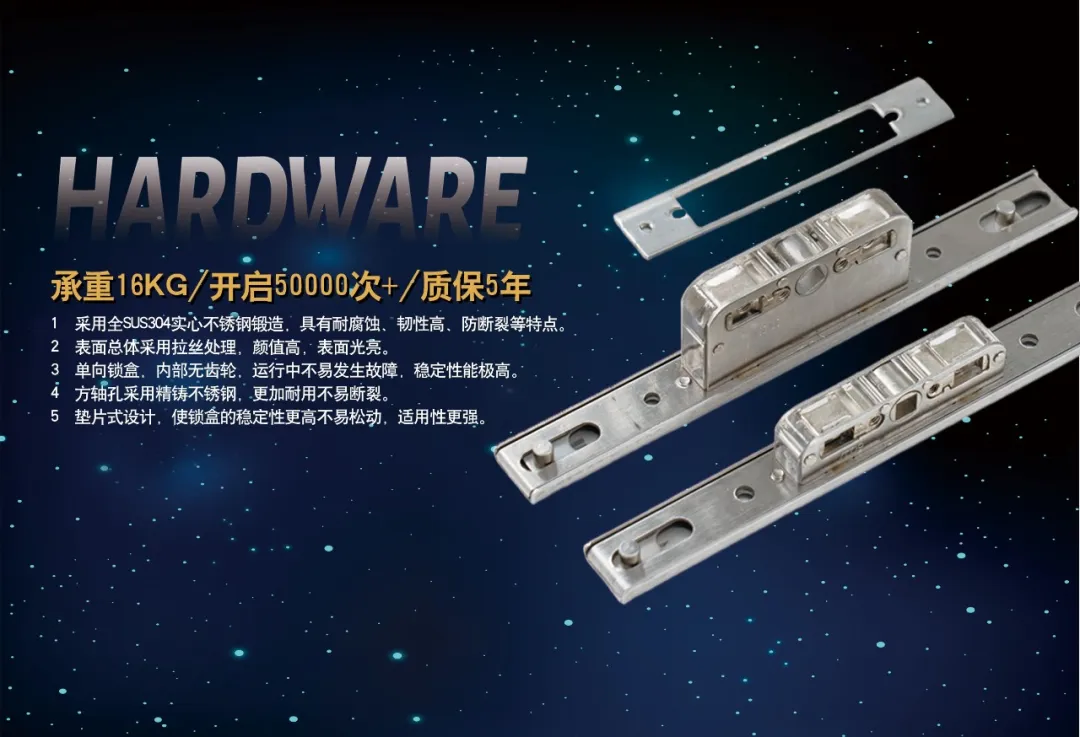

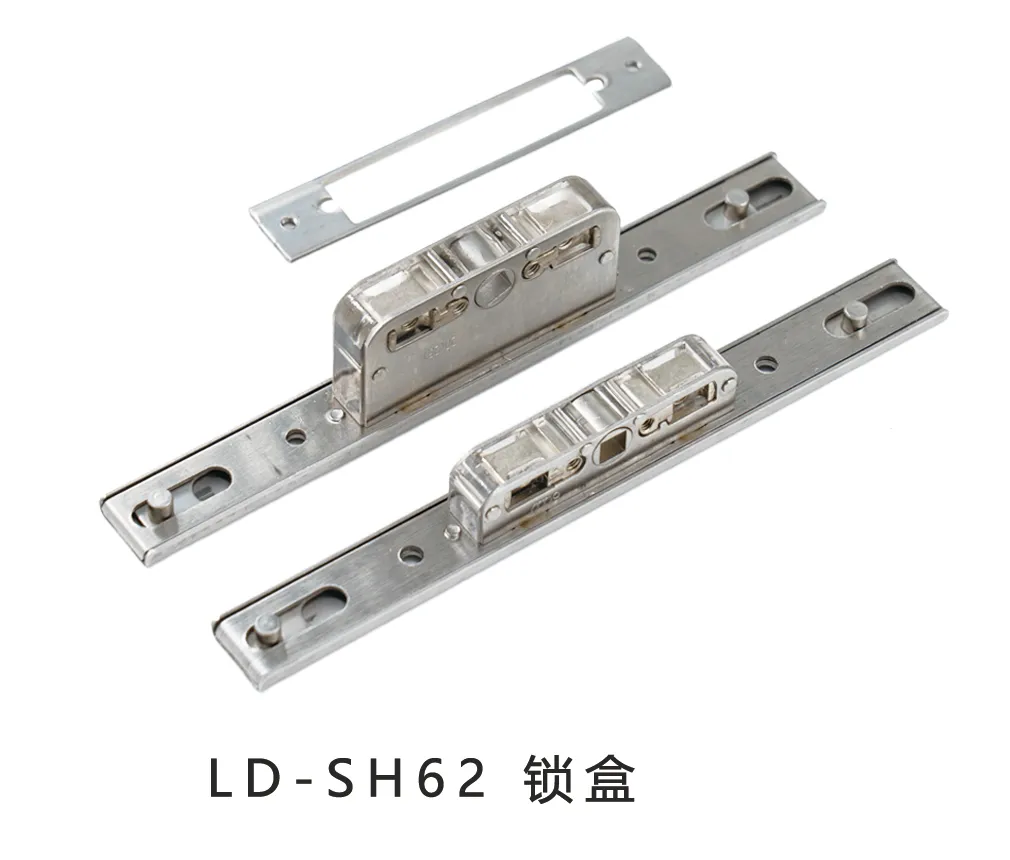

承重16KG/开启50000次+/质保5年
采用全SUS304实心不锈钢锻造,具有耐腐蚀，韧性高，防断裂等特点
表面总体采用拉丝处理，颜值高，表面光亮
单向锁盒，内部无齿轮，运行中不易发生故障，稳定性能极高
方轴孔采用精铸不锈钢，更加耐用，不易断裂，
垫片式设计，使锁盒的稳定性更高，不易松动，适用性更强，
多种规格，任您选择
LOAD-BEARING 16KG/ OPEN 50,000 TIMES +/ WARRANTY 5 YEARS
MADE OF ALL SUS304 SOLID STAINLESS STEEL FORGING, WITH CORROSION RESISTANCE, HIGH TOUGHNESS, ANTI-FRACTURE AND OTHER CHARACTERISTICS
THE SURFACE IS GENERALLY BRUSHED, THE APPEARANCE LEVEL IS HIGH, THE SURFACE IS BRIGHT
ONE-WAY LOCK BOX, NO GEAR INSIDE, EASY TO BREAK DOWN IN OPERATION, HIGH STABILITY
THE SQUARE SHAFT HOLE IS MADE OF PRECISION CAST STAINLESS STEEL, WHICH IS MORE DURABLE AND NOT EASY TO BREAK.
GASKET DESIGN MAKES THE LOCK BOX MORE STABLE, NOT EASY TO LOOSE, AND MORE APPLICABLE
A VARIETY OF SPECIFICATIONS, YOU CAN CHOOSE

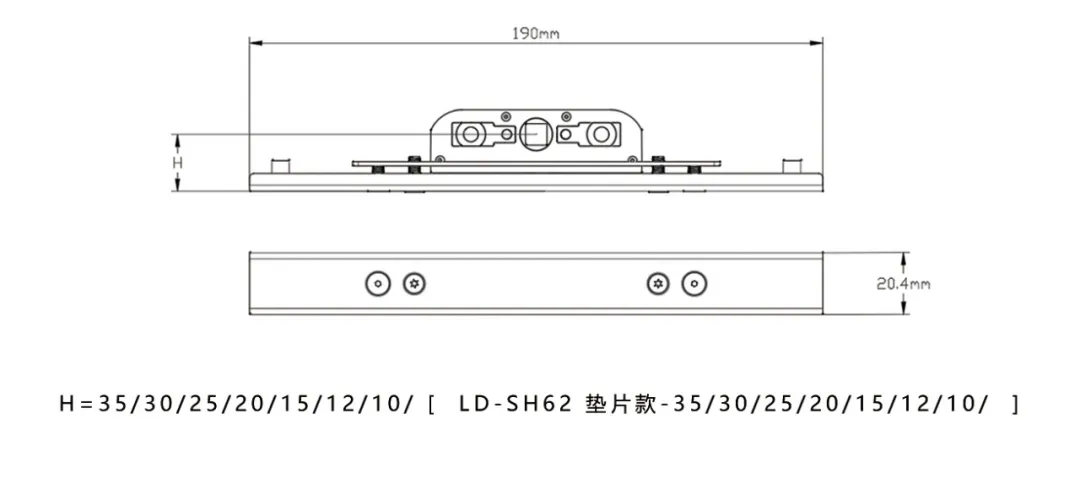

PARAMETERS
LD-ALL304 STAINLESS STEEL GASKET DRIVE CASE
MATERIAL:SUS304

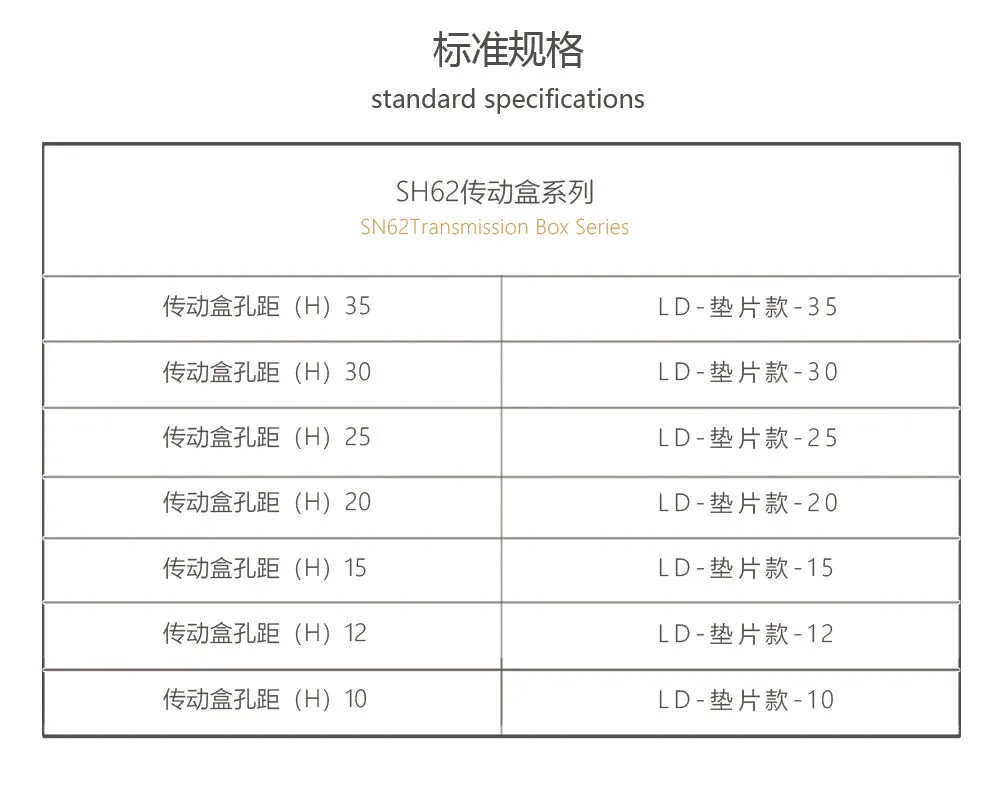

SIZE:35/30/25/20/15/12/10
SURFACE TREATMENT:PRIMARY COLOR,BRUSHED
SCOPE OF APPLICATION:CASEMENT WINDOW,FLAT DOOR

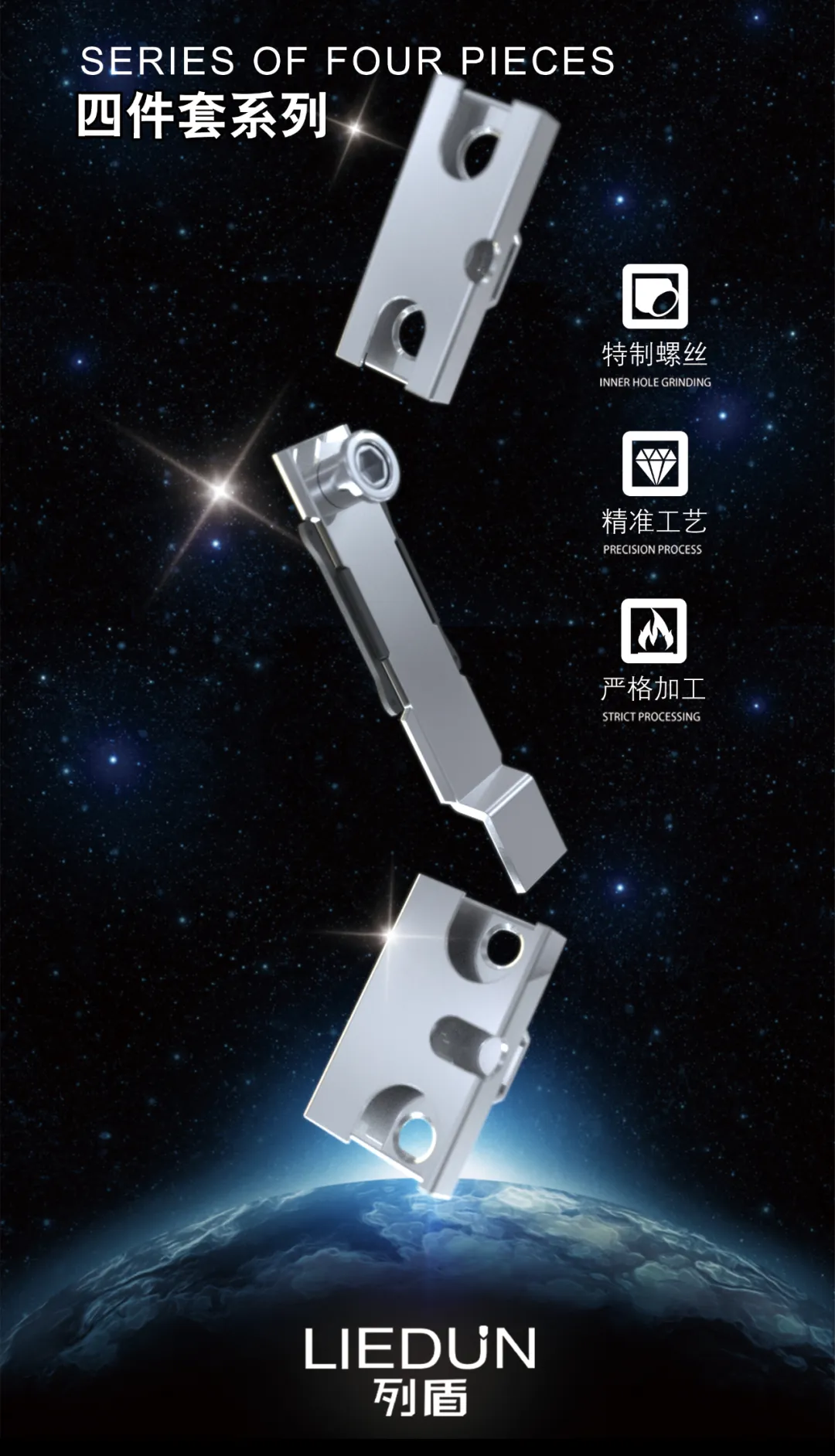

特制螺丝
精准工艺
严格加工
SPECIAL SCREW
PRECISION TECHNOLOGY
STRICT PROCESSING
产品参数

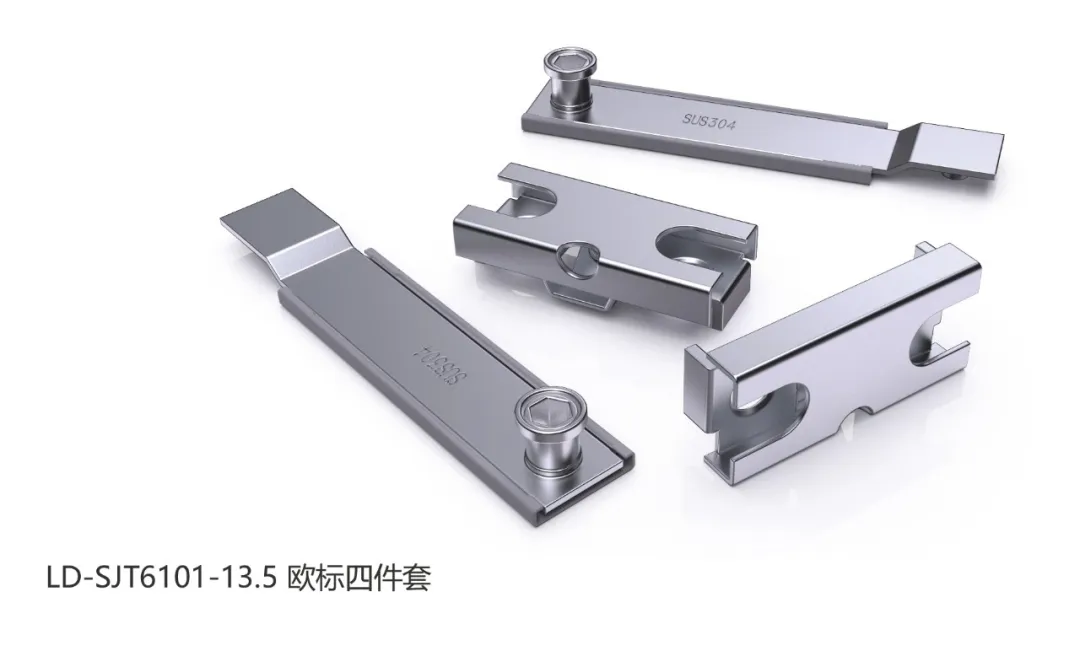

LD-SJT6101-13.5/23欧标四件套
材质：不锈钢
编号：LD-DJT6101-13.5/23
适用范围：平开窗、平开门
PRODUCT PARAMETER
LD-SJT6101-13.5/23 EUROPEAN STANDARD FOUR-PIECE SET
MATERIAL: STAINLESS STEEL
NUMBER: LD-DJT6101-13.5/23
SCOPE OF APPLICATION: CASEMENT WINDOW, FLAT DOOR
